Industrial Auxiliary
Equip./Prod.Div. |
|
|
|
The super-dry storage
cabinet ,produced by Totech which is the largest manufacturer in the
world, is always the market leader in the world. With over 30
years’ experience of making the auto-electric desiccant dry box,
we have sold more than 400,000 cabinets all over the world.
Recently, our cabinets have also been applied in the field of
Semiconductor, LCD/LCM, SMT/SMD Optics/Fibers, PCB, Air Purification
and Chemical Cleaning.
As the Partner of Totech,
CBI has been engaged in exploring in this field for 5 years in China
and .now we're not only distributor of original cabinet, but provide
CKD cabinet of CBI Brand as well. CBI series of Fast Dehumidify
Cabinet ( FDH /ADH) which our R/D engineer develop to overcome the
weakness of traditional Products received National Patent in
2004.
|
|
（1）Japan Toyo Living Automatic Electronic Dehumidity
Storage |
 |
Anti-Static Glass for Window/Anti-Static
Coating）
Increasing anti-static capability by treatment of the
surface. |
|
Auto Operation）
Each time ,the cabinet door is opened, the humidity
controller will automatically startup to quickly reduce internal
humidity level of cabinet. |
|
Digital Controlling Panel）
Precise Humidity Indication inside the box, Simple Humidity
Setting, with simultaneously displayed environmental
temperature. |
|
 |
|
* Optional Volumes of
1160L、720L、510L、252L
* Optional anti-static
* Detail data available for consultation |
|
|
|
|
（2）CBI
Automatic Electronic Dehumidity Storage |
|
Cabinet
of CBI DH series can provide super dry mini-environment to satisfy
the requirement of low-humidity for storage purpose in many fields,
such as industries, hospitals, science, research institutes, and
museums, etc. This latest technology can low down the high humidity
which would affect the quality of both non-finishing and final
products.
Advantage ）
1. Latest development of dehumidifying technology (Patent)
from Japan rather than traditional method.
2. No Noise when working, an assurance of benign operation
environment.
3. Low Power Consumption and Cost.
4. Reliable Usage, Long Service Life, Easy and Flexible
Operation no need of assistant operations such as pipe contraption.
|
|
Types |
DH-400-20
|
DH-800-20
|
|
Humidity Range |
20%～50% RH,
|
|
Display |
Digital (+/-3%)
|
|
Exterior Size |
W900×D460×H1000
|
W900×D460×H1800
|
|
Interior Volume |
400L
|
800L
|
|
Body Materials |
Steel powder coating |
|
Door |
Magnetic Sealed Glass Door |
|
Power |
220Vac/50Hz （optional 110Vac）
|
|
 |
|
|

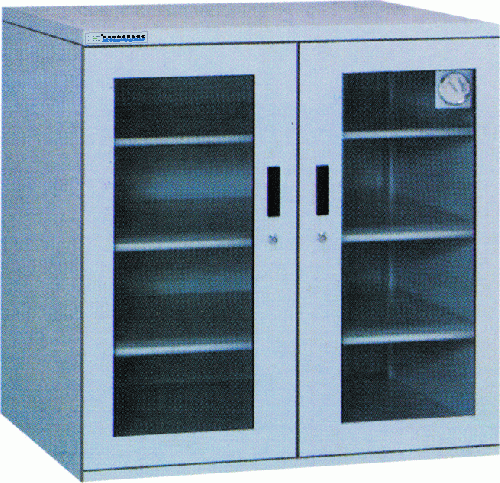

（3）FDH/ADH
Fast De-Humidifying Series(
CBI's Patent)
 |
| FDH
Series: CBI
recently developed FDH series Cabinet, applying latest air dry
technology to our DH cabinet in order to improve
de-humidifying rate of traditional electronics dehumidified cabinet.
CBI design a new system to spray normal Compressed air or N2
gas, which helps to quickly recover the internal related
humidity level once door was frequently opened during the production
process. This system can control flow rate & dew-point as well
to keep internal humidity level down to 5%RH within a few minutes.
Without traditional electric dry unit, this system can also be used
on mass production where cabinet needs to be frequently
open/closed.
Advantage ）
1.latest Patent for this new application used on production
where compressed air or n2 air is available.
2. Fast enough dehumidify ( recovery time ) from room relative
humidity down to 5%
3. replace traditional N2 cabinet due to cost saving.
4. Reliable Usage, Long Service Life, Easy and Flexible
Operation
5.digital setting and display with alarm
ADH
Series: Ultra-low
humidity storage cabinet has been widely applied to store various
sensitive devices and materials in current Hi-tech fields such as
microelectronic, optoelectronics, LCD/TFT, PCB and Semiconductor
etc. However, due to the limitation of current Auto-electronic
dehumidifying technology, frequent door opening makes the humidity
inside of the cabinet fluctuate radically when the cabinet applied
in the busy product line and makes recovery time of inside humidity
longer. To solve the above problems, CBI has developed the latest
ADH Fast Dehumidify Storage Cabinet, using special air dry
technology, which can make recovery time as far as within 10 mins
back to 10% or below. Either compressed or N2 air is sprayed into
the cabinet through a dryer filter and flow meter, therefore, the
humidity can be maintained as low as 1%RH in a dynamic state. ADH
Fast Dehumidify Storage Cabinet is of high practical value in both
the efficiency and reducing running cost. CBI
also develops a new control panel, which user can set internal
relative humidity level you want to reach. When the humidity is down
to setting point, purging air is automatically stopped. Once door
open/closed, air will be surging again till setting level been
reached. Using this new panel is also to save energy.
| Model |
ADH-400 |
ADH-650 |
ADH-800 |
| Humidity |
5%-50%RH |
| Dimension/capacity |
W900*D460*H1000/400L |
W900*D460*H1600/650L |
W900*D460*H1800/800L |
| Material/door |
Galvanized steel with
powder coating and magnetic seal glass door |
| shelf |
2pcs |
3pcs |
3pcs |
| Power Supply |
AC 220V/50HZ |
| Options |
1. Japanese made
electronic dehumidify controller
2. ESD coating/wheel
3. Stainless steel
material
4. Particular size order
5. Other
|
|
|
 |
|
|
(

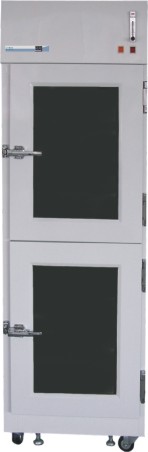

4 ) Class
100 Laminar Flow Fast Dehumidifying Cabinet
In current microelectronics industry, products development tend
to be more highly integrate and micro. And the dust, moisture have
become the main environment factors which affect the quality of the
product. Due to the current storage facilities are not capable of
providing the mini-environment which can keeps clean and low
humidity at the same time, the damage caused by the above factors to
the semi-product and the material stored in the cabinet is quite
difficult to be avoided. Meanwhile, the dehumidifying speed of the
current electronic dehumidifying cabinets are not quick enough to
meet the demands of the frequent open and close of the door in the
production process. The class 100 clean dehumidifying cabinet developed by CBI can
meet such needs of the extensive customers and improve the yield.
This equipment can be widely applied in various industries,
such as Micro-electronic, Semi-conductor, LCD/LED,
Multi-layers PCB Board, Optical apparatus and other fields.
| Model |
CADH-400-05 |
CADH-650-05 |
| External Dimensions |
900*510*1400mm |
900*510*2000mm |
| Effective Capacity |
400L |
650L |
| Materials |
Galvanized steel with
ESD powder coating and magnetic seal glass door |
| Door |
2 |
4 |
| Humidity Display |
Digital LED, Accuracy: ’3% |
| Humidity Setting |
1%RH room humidity |
| Clean Class |
Class 100(ISO5) |
| Filter Efficiency |
99.999% Mpps at 0.12μm |
| ESD Wheel |
Available |
| Air Pressure Display |
Available |
| Dehumidifying |
Drop to 10%RH from normal within
15mins, non-load |
|
|
|
|
|
（5）Japan Kanomax Particle Counter
|
|
As the Authorized distributor of Kanomax,
Japan, CBI can provide the advanced and complete test instrument,
testing service and technical consultant; to ensure your cleanroom or
facilities running under a perfect and efficient condition, including
dust particle counter, dust particle real time monitoring system,
temperature & humidity meter, anemoscope etc. Meanwhile, CBI could
provide the calibration of the dust particle counter.
KANOMAX 3886 ）Portable Laser Particle Counter
● The world first dust particle counter also combining with
temperature, humidity and air velocity sensors in one
● 5 counting channels （0.3, 0.5, 1.0, 3.0 & 5.0 micron）
● Built-in flow meter to measure the flow more accurately and get the
result more reliable
● 0.3μ minimum counting setting, small and convenient.
● High efficient data memory and inquiry capability ( up to 500
testing samples)
● Could be remote control by computer with Kanomax Software
|
|
Feature |
|
Test channel
|
0.3，0.5，1.0，3.0，5.0 micron
|
|
|
2 |
|
Sampling flow rate
|
0.1 cfm
(2.83L/min) |
|
Sampling time
|
1
second～99
minutes 59 seconds (regulated by second) |
|
Operation mode
|
Single/repeat/continue/calculate/ remote |
|
Display
|
4 lines, 20 letters LCD display |
|
Power supply
|
4 AA-Size batteries or AC power supply
(input 100-240V AC)
|
|
Dimension and
weight
|
115(W)x70(H)x211(D) mm about 980g
|
|
|
 |
|
|
|
|
（6）Bershire Wipe / Berkshire Copy Paper
|
| As a leading Company in the micro-contamination field, Berkshire Co.
is a professional in the manufacturing of clean room supplies, such as
various types of cleaning wiper/paper, stationery, etc. which are
recommended to be used from Class 1to class100k environment. its
products currently have been widely using in many fields in like
semiconductor, microelectronics, optical , biological, medical device
etc around all over the world. In 1995 Berkshire achieved
certification to the ISO 9000 quality management system standards.
Berkshire will consistently provide quality products and service to
satisfy customer requirements. we will respond to the needs of our
customers through innovative technology and strictly adherence to
established quality standards with a perpetual goal of product,
process and systems improvement. quality control system. |
| Wiper Application Selector
|
|
Normal Cleaning |
Spill Control |
Equipment Cleaning |
Acid-Base Resistance |
Sterile Application |
Abrasion Resistance |
Heat Resistance |
Economic Use |
|
ULTRA SEAL 3000 |
1 |
1 |
1 |
1 |
4 |
1 |
2 |
2 |
|
SUPER
POLX 1200A |
2 |
2 |
1 |
1 |
4 |
1 |
2 |
2 |
|
MICROSEAL
1200HD |
1 |
2 |
1 |
1 |
4 |
1 |
2 |
1 |
|
PRO-WIPER
750 |
1 |
2 |
2 |
1 |
4 |
1 |
2 |
1 |
|
DURX670 |
1 |
1 |
3 |
1 |
4 |
2 |
3 |
2 |
|
POLX1200 |
2 |
2 |
1 |
1 |
4 |
1 |
2 |
1 |
|
SUNSORB
300 |
1 |
1 |
3 |
1 |
4 |
2 |
1 |
2 |
|
TWILLX
1622 |
1 |
2 |
3 |
2 |
4 |
1 |
1 |
3 |
|
LABX123 |
2 |
1 |
3 |
2 |
4 |
2 |
3 |
1 |
|
GAMMA |
1 |
2 |
1 |
1 |
1 |
1 |
2 |
2 |
|
GAMMA |
1 |
1 |
2 |
1 |
1 |
2 |
3 |
1 |
|
GAMMA |
1 |
1 |
1 |
1 |
1 |
1 |
2 |
2 |
|
| 1. Excellent 2、Good 3、Average 4、Not
Recommend |
| |
|
|
| |
Used
in Sterile Environment |
|
|
|
|
|
|
|
|
（8）Dycem Washable Sticky-Mat
|
| As a patent product manufactured by DYCEM Co.
-England with a history of 20 years, the washable Sticky mat is mainly
used in controlling contamination specially for changing room and
entries of cleanroom where operators' soles and cart's wheels may
bring ducts in. Realizing the target of dust controlling. With its
special characteristics of sticking tine dust and easy quick cleansing
plus Anti-static function, it makes contamination control of clean
changing room more efficiency and low cost. the another big advantage
for using Dycem Mat is environmental protection comparing with other
kind of stcky- mat which are still found and used in market. Besides,
DYCEM also provides cleanroom tools and detergents that are applied in
the sterilization of the fields of medicine making, biology and
microbe contamination control. |
|
Performance Parameters of Dycem Dust-Absorbing Carpet |
|
|
|
|
PROTECTA MAT(Standard Type) |
CLEAN-ZONE （Installation Type） |
|
Installation Method |
Randomly
put according to location |
Installation |
|
Breadth |
1.2m |
2m |
|
Length |
1.0m、 2.0m、3.0m、4.0M
|
Depended
on Requirements |
|
Thickness |
7mm |
2.1mm |
|
Color |
Blue |
Blue，Grey |
|
Service Life |
2～4Years |
2～4Years |
|
Holding
function of static scattering or not |
No |
Optional Grey |
|
Resistance Rate |
No |
108Ohms |
|
Load |
40Kg/cm2 |
70Kg/cm2 |
|
Anti-Heat Performance |
Operated under 0 -50、
|
|
Toxicity |
No |
|
Performance of Gas Releasing |
Neglectable |
|
Anti-Chemistry Performance |
Majority of Chemical Elements |
|
|
|
|
|
|
（9）Other Products |
|
|
|
|
|
|
|
|
